DGW-W710 (via Device Gateway Solution by Takebishi)

Bridge the gap between production sites and IT systems

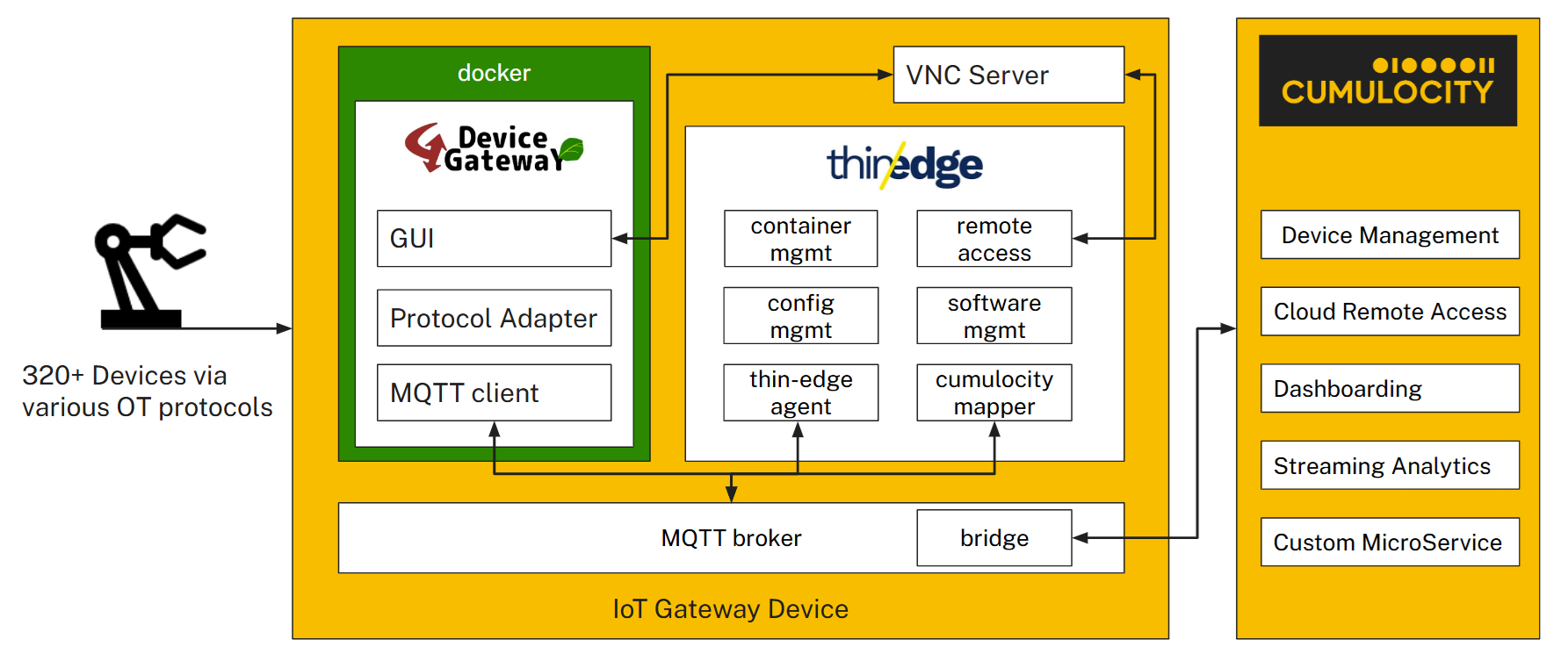

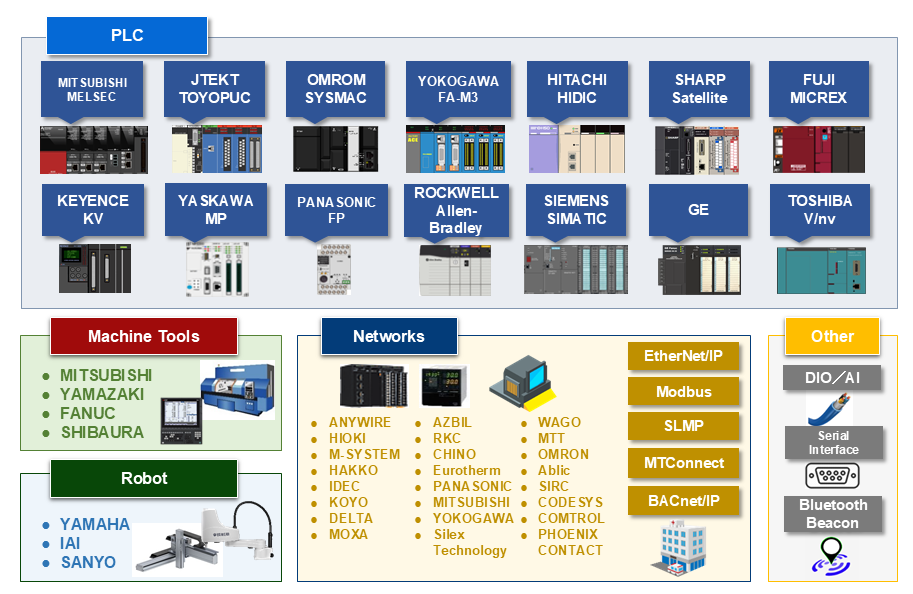

This is a data access unit that acquires operation information such as PLCs at production sites and bridges to the IoT service. Accessible more than 320 models of equipment by simple settings and converts into various upper-level communication such as OPC UA, MQTT, HTTP, FTP. Logic execution by the action function as an edge is also possible, and IoT system can be introduced in a short time.





Thin-edge Device Integration with Cumulocity

Github Installation Guide

Partner name: Takebishi Corporation

Download Latest Certificate
Partner:
DGW-W710 (via Device Gateway Solution by Takebishi)
DGW-W710 (via Device Gateway Solution by Takebishi) - Image 2

Additional information

Product Type

Edge Integration Software, Gateway
Cumulocity IoT Certified

Yes
Cumulocity IoT Functions

Child Device Management, Measurements
Operating System

Linux
Processor

ARM
RAM

1 GB, 2 GB
Flash

4 GB – 8 GB
Power Supply

DC Power Supply
Hardware Interfaces

Digital I/Os, Ethernet, Micro USB, SD Card, Serial Port
Min Operating Temperatures

-20°C
Max Operating Temperatures

+55°C
Industrial Protocols

BACnet, DNP3, EtherNet/IP, FINS, IEC 60870-5-X, IEC 61850, Modbus/RTU, Modbus/TCP, OPC UA, S7 Protocol, SNMP
Integration Type

Cumulocity OPC-UA Agent, thin-edge.io
Supported Regions

Americas, APAC, EMEA, LATAM, NAM

Device certification

Firmware NameHardware ModelAgent NameCumulocity IoT Version
DeviceGateway 3.4.2.1602DGW-W710 3.4.2.1602 700500204-1F8FF33CDeviceGateway 3.4.2.16021020.416.0Download

Attachments

Data Sheet WISE-710

Download

One Slider - Takebishi and Cumulocity in a Nutshell

Download

Company Intro, Device Gateway, Integration, Benefits
