EOR-3DS

The EOR-3DS combines short-circuit and earth fault indication in a single compact device. It can be used as a classic short-circuit and earth fault indicator, as well as digitisation unit for secondary substations. The device combines the advantages of various location processes. Through the prioritization and weighting of the location processes, they can be combined perfectly. This makes the EOR-3DS a superior aid when locating earth faults and short-circuits in analog as well as in digital secondary substations.

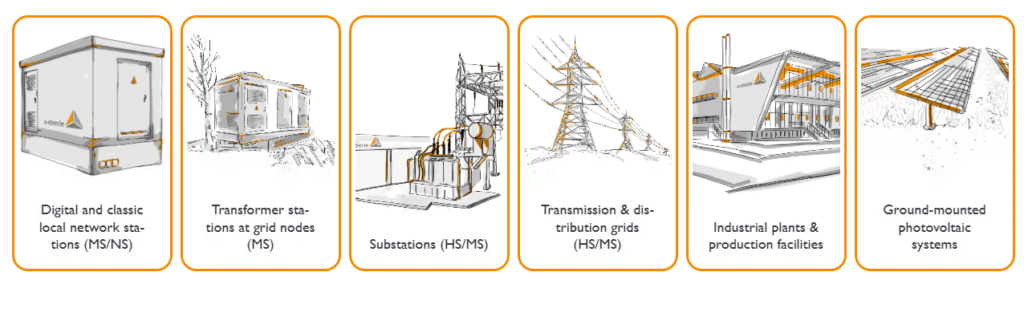

Use Cases

Cumulocity Integration Note:
The device can authenticate towards the platform using device credentials or via X.509 certificates.

Partner name:
A. Eberle GmbH & Co. KG

Download Latest Certificate
Partner:
EOR-3DS

Additional information

Product Type

Gateway
Cumulocity IoT Certified

Yes
Cumulocity IoT Functions

Child Device Management, Device Configuration, Events, Firmware Management, Log File Retrieval, Measurements, Network Interfaces, Restart, Shell Commands
RAM

16 GB
Flash

16 GB – 32 GB
Hardware Interfaces

Digital I/Os, Ethernet
Power Supply

DC Power Supply
General Protocols / Mobile Technology

HTTP, MQTT
Industrial Protocols

DNP3, IEC 60870-5-X, IEC 61850, Modbus/RTU, Modbus/TCP
Integration Type

MQTT (smartREST 2.0) Custom Agent
Supported Regions

Americas, APAC, EMEA, LATAM, NAM

Device certification

Firmware NameHardware ModelAgent NameCumulocity IoT Version
EOR3DS-FIRMWARE 2025_08_14_2.1.8EOR3DS 0001 24134564A_EBERLE-PIDU_KABELFELD_01-24134564 1.02025.301.0Download

Attachments

Data Sheet

Download

Combined Earth Fault and Short Circuit Indicator
