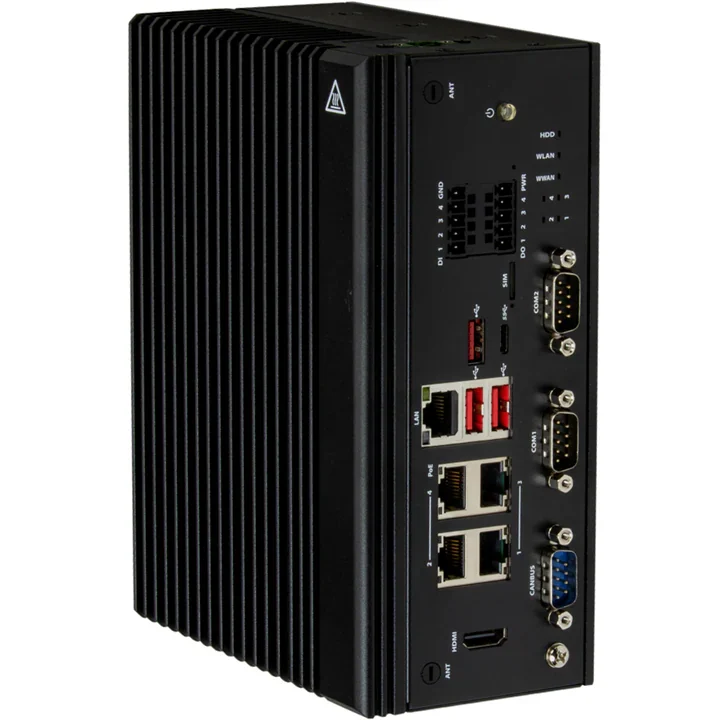

IoT ARS-E103-JONX-H2

Compact fanless edge AI platform, with 8-core NVIDIA Jetson Orin™ NX module. Up to 157 TOPS.

Key Applications

• Artificial Intelligence (AI)
• Imaging and Computer Vision
• Industrial Automation
• Retail
• Smart Medical Expert Systems
• Healthcare
• Digital Signage Kiosk, Interactive info system

Key Features

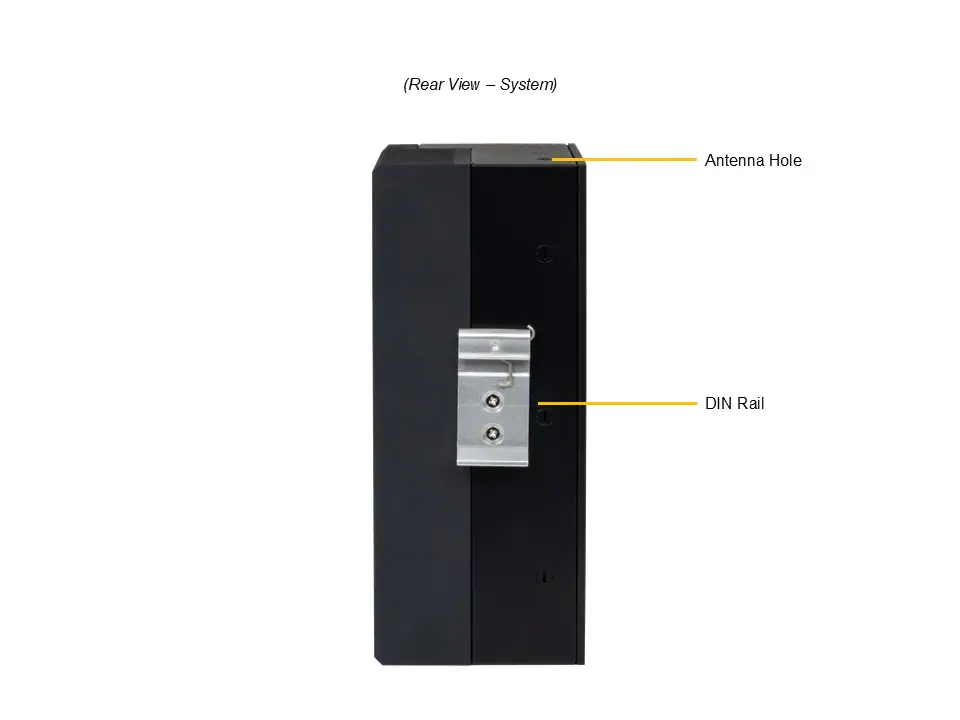

• Fanless DIN Rail Mounted System
• NVIDIA Jetson Orin NX Fanless Edge AI Inferencing System
• 8-core Arm ® Cortex ® -A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
• 1024-core NVIDIA Ampere GPU with 32 Tensor Cores, Up to 157 TOPS
• 1 x 10G/1G LAN optional by Sku (10G: -H(2), 1G: -L(2))
• 4 x 1Gbe w/ POE or 2 x1Gbe w/ PoE+ (by AOM-POE-001 jumper setting)
• 1 x M.2 B-key 3042/3052 (USB3.2, USB2.0) w/ dual nano-SIM
• 1 x M.2 E-key 2230 (PCIe x1, USB2.0)
• 1 x M.2 M-key 2280 (PCIe4.0 x4)
• 1 x NVMe 2280 at M.2 M-Key
• DC 9-36V
• Operating Temperature -25℃ to 60 ℃ (-13°F to 140°F) with 0.7m/s airflow and Industrial Grade peripherals



Partner name: SuperMicro Computer

Device on Partner Website
