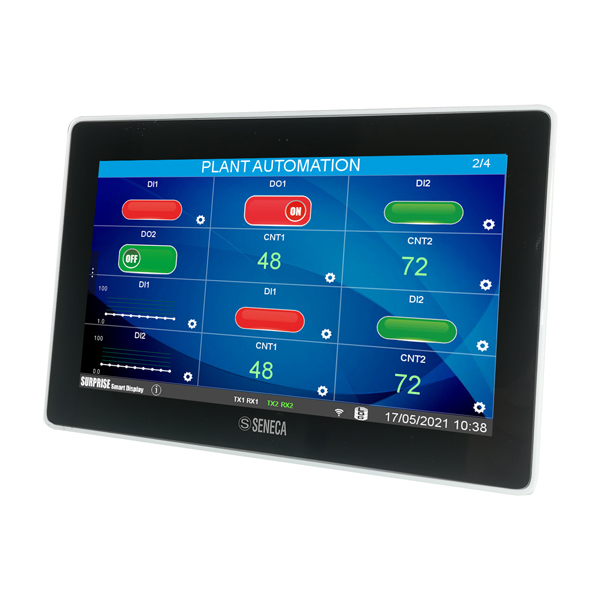

SURPRISE Smart Display (SSD-S)

IEC 61131 EDGE controller, Straton IDE, HMI, 2 Eth ports, VPN, built-in I/O’s, WiFi with Energy protocols

SSD-S Energy is a next-generation IIoT IEC611331-3 controller with a 7” touchscreen HMI. The device integrates a powerful ARM microprocessor, a high-brightness display with a proximity sensor, dual Ethernet ports, integrated I/O channels, a WiFi module, and two serial ports. SSD is a multi-purpose softPLC that includes advanced gateway functionality, data logger, alarm management, Wi-Fi router, logic functions, VPN technology, remote assistance / remote control functions, and a convenient widget-based data display that requires no programming skills.

SSD-S generates integrated HMI and client/server connectivity solutions for building systems of varying complexity and with different simultaneous access points to the plant or individual machine. The device also integrates with data analysis, supervision, and management systems, ERP and MES, through the use of IIoT protocols such as MQTT and OPC-UA. SSDS is ideal for providing digitized and interconnected industrial solutions to maximize the productivity and efficiency of your plants under Industry 4.0 standards. 800 x 480 pixel, 16M colours.

Serial Protocols

• ModBUS TCP-IP Server/Client
• ModBUS RTU Master/Slave
• FTP/FTPs Client
• sFTP Server
• HTTP/HTTPS server
• SMTPs client
• Samba

IIoT Protocols

• MQTT client
• MQTTs client
• https
• http post
• OPC-UA Client/server
• IEC 61850 Client/Server
• SNMP v2
• MeterBUS
• S7 Client

Energy protocols

• IEC60870-101 Master / Slave
• IEC60870-104 Client / Server
• IEC61850 Client / Server

Hardware Interfaces

• 2 x Ethernet 10/100Tx ports
• Serial
  • 1 x RS232/RS485 commutable serial port, baud rate max 115k
    1 x RS485 serial port, baud rate max 115kbps
• USB
  • 1 x micro USB host port
    1 x micro USB serial port for debug

Models: SSD-0-0-0-0, SSD-0-L-V-I, SSD-S-L-V-I, SSD-E-L-V-I

Partner Name: Seneca SRL
