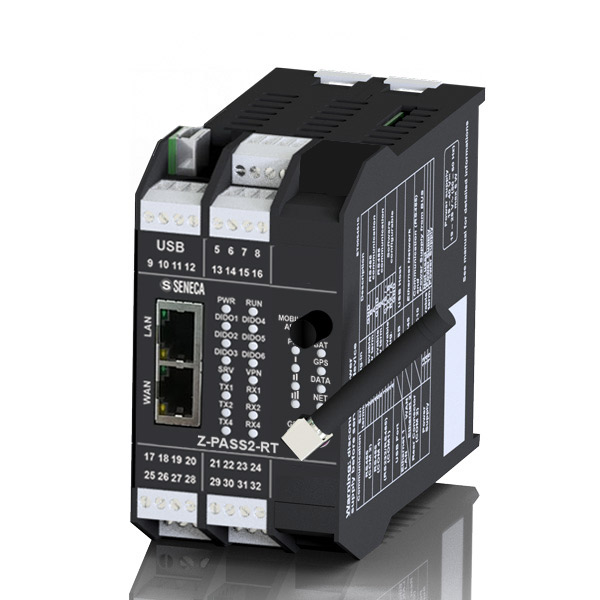

Z-PASS2-RT-4G-S

IEC 61131 IIoT Edge Controller, Straton IDE, 2 Eth ports, VPN, built-in I/O’s, GPS receiver, 4G modem

Z-PASS2-RT-S is a high-performance multifunction controller that combines PLC functionality with routing and remote access. It is in fact based on StratON softPLC with an integrated web server, VPN, and 4G LTE modem/router with GPS/Glonass functionality. Equipped with 2 Fast Ethernet ports (1 LAN port, 1 WAN port), 3 serial ports, and 1 USB host 2.0 port, Z-PASS2-RT-S supports ModBUS TCP Server, ModBUS RTU Master/Slave, FTP/SFTP Server, HTTP/HTTPS Server, OpenVPN, SSL, IoT protocols (MQTT, OPC UA, HTTP post) and optional Energy Management protocols (IEC 60870-101, IEC 60870-104, IEC 61850).

The controller has 6 configurable general-purpose digital channels and 2 analog inputs. The device is configurable via Z-NET4, web server, and programmable in IEC 61131-2 environment. It also makes use of 512 MB RAM, 4 GB Flash Memory, and a Micro SD slot up to 32 GB. Integrated into LET’S telecare and remote control platform, Z-PASS2-RT-S can support Point-To-Point-Telecontrol or Single LAN Telecontrol connections. The device complies with the most stringent cybersecurity standards starting from compliance to penetration test conducted according to OWASP, NIST 800-115, Risk Analysis, and IEC62443.

Communication Interfaces

• 2 Ethernet ports configurable in Switch or LAN/WAN mode,
• CAN
  • 1 x CAN port (terminals)
• Serial ports
  • 1 x RS232 / RS485 port, max baud rate 115kbps
    1 x RS485 ports, max baud rate 115kbps
• USB
  • 1 x USB host port on type A side connector
    1 x micro USB port for debugging
• Satellite Receiver
  • GPS / GLONASS / BeiDou (compass) / Galileo / QZSS
• Modem
  • Multiband M2M/IoT, 4G / LTE World Wide

Serial Protocols

• ModBUS TCP server
• ModBUS RTU master/slave
• FTP/SFTP server
• HTTP/HTTPS
• SMTPs client
• Samba

IoT Protocols

• MQTT / MQTTs
• OPC UA Server
• https, http post

Partner Name: Seneca SRL

Device on Partner Website
