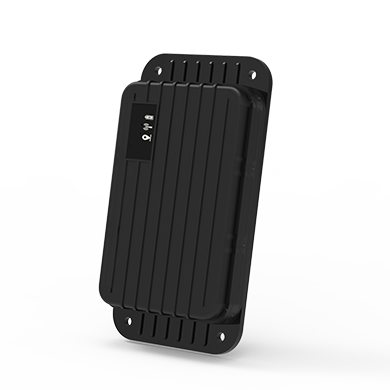

KCS TraceME TM-3201 / P3D2

The KCS TraceME TM-3201/P3D2 is a compact, IP68-rated tracking module for industrial, transportation, and logistics applications — including container tracking, asset management, and remote diagnostics. It combines cellular, LoRa, GNSS, Wi-Fi, and beacon-based positioning with up to 10 years of standby battery life, making it suitable for long-term, low-maintenance IoT deployments across varied environments (-20°C to +70°C).

Key strengths: multi-technology indoor/outdoor positioning, offline data buffering (up to 60,000 log entries), tamper detection, and full over-the-air (OTA) reconfigurability — allowing one hardware platform to serve many use cases.

Technical Device Details

Connectivity

• Cellular: Quectel BG95-M3 — LTE Cat M1 / NB-2 / EGPRS, global bands, Nano-SIM (+ optional SIM-on-chip)
• LoRa: Semtech LR1110, EU-868 MHz, LoRaWAN 1.0.2 + custom protocol
• Optional: Wi-Fi sniffing, BLE/2.4 GHz RF (Nordic nRF52832), NFC, Sigfox (in development)

Positioning

• GNSS: Quectel L76 (GPS + GLONASS + Galileo), <2.5 m CEP
• LoRa localization: ~50 m outdoor accuracy (static devices)
• Beacon (BLE/RF) triangulation: down to ~1.5 m, indoor/outdoor
• Wi-Fi sniffing (MAC/RSSI-based) and optional FSK signal-strength positioning

Sensors (optional)

• 3D accelerometer (up to 16g)
• Humidity/temperature (±1.8% RH / ±0.2°C)
• Tamper contact (light-sensor based, triggers immediate LoRa/FSK alert)
• External I2C sensor interface via extension connector

Power & Mechanical

• Internal 3.6V Li battery, 8000 mAh (default); optional rechargeable LiPo with wireless/solar charging
• Standby current: ~1 µA; peak current 50 mA (LoRa) / 100 mA (2.4 GHz)
• Enclosure: IP68, 138 × 72 × 22 mm; screw or magnetic mounting

Cumulocity Integration

The device integrates with Cumulocity IoT via a custom MQTT-based integration,. MQTT protocol handling is offloaded to the onboard cellular modem, reducing firmware overhead and power consumption while leveraging the modem’s built-in connectivity stack.

Provisioning & Data Flow

1. Device is configured with Cumulocity tenant and MQTT connection settings.
2. It auto-connects and publishes: telemetry, location, alarms, and device status.

Remote Management

• Remote configuration of operating parameters
• Command execution from the Cumulocity platform
• OTA firmware and configuration updates

This architecture suits intermittently-connected, battery-powered deployments: the device wakes, transmits buffered data, and returns to sleep, minimizing airtime while remaining fully manageable through Cumulocity’s standard device model.



Availability: Directly from KCS BV or authorized distributors. Server-side integration scripts available to registered resellers, or via KCS partner hosting services.

Partner name: KCS BV
