owa450 – Linux Gateway

The Perfect Platform for controlling and monitoring your industrial Machines and Vehicles.



Description

The owa450 is the needed platform for you to collect data in the easiest possible way, getting your company the complete control of the application. The owa450 is the perfect solution for controlling and monitoring your industrial machines and vehicles, with its powerful Cortex A8 microprocessor (800MHz) can process the information at the Edge and your application will decide the meaningful information to be sent to the Cumulocity.

Key Features

  • Cumulocity Integration: thin-edge.io
  • OS: LINUX, Debian File System
  • Processor: ARM Cortex A8 32 bit 800MHz
  • Memory: 512MB DDR3; 1GB NAND Flash
  • GSM Communication: Global LTE Cat 1
  • Interfaces:
    • 2 CAN bus (full speed 1Mbps CAN 2.0B)
    • 2 CAN FD buses
    • Up to 2 K-line bus
    • Digital & Analog I/O
    • 3 RS232 & 2 RS485
    • USB Host 2.0
    • Ethernet, Maxim 1-wire, uSD card slot, Audio Codec…
  • Position: Concurrent reception of up to 3 GNSS, GPS, GLONASS, GALILEO, BeiDou
  • Enclosure: IP40 (protection against dust)
  • Sensors: Programmable 9 axis sensor, accelerometer, gyroscope and magnetometer. Optional Dead Reckoning.
  • Highly customizable and powerful. Programmable in C, Python…
Partner name: Owasys
Download Latest Certificate
Partner:
owa450 - Linux Gateway

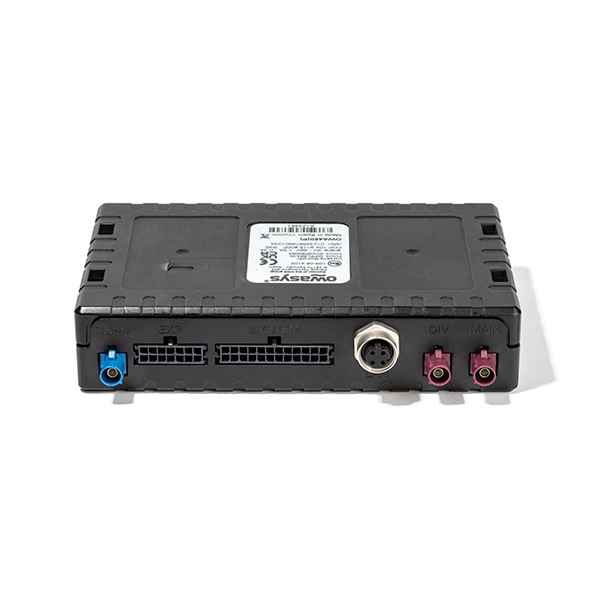

owa450 - Linux Gateway - Image 2

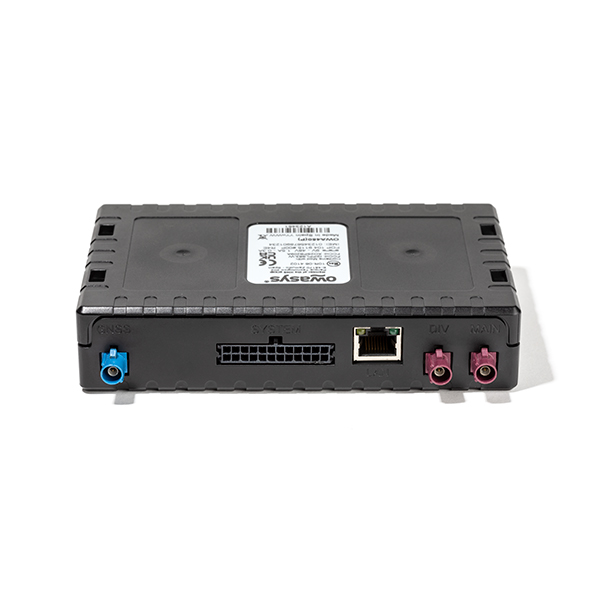

owa450 - Linux Gateway - Image 3

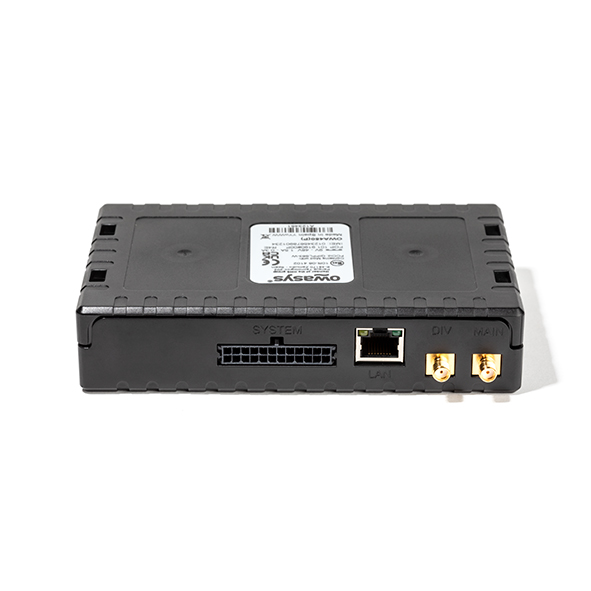

owa450 - Linux Gateway - Image 4

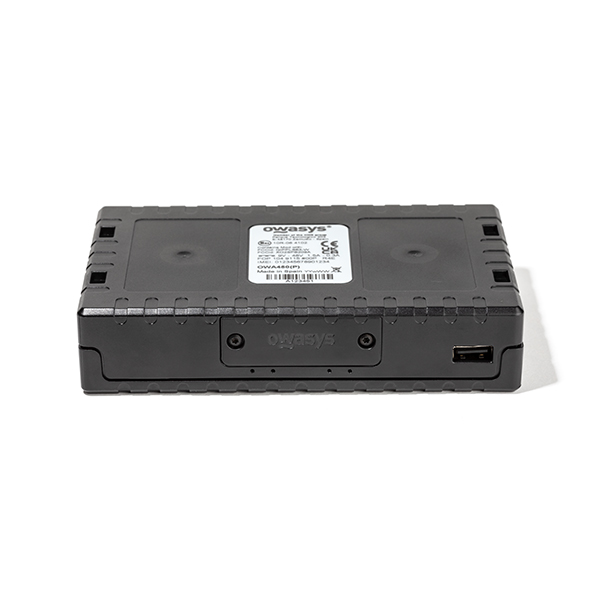

owa450 - Linux Gateway - Image 5

Additional information

Product Type

Gateway
Cumulocity IoT Certified

Yes
Cumulocity IoT Functions

Alarms, Child Device Management, Device Configuration, Device Profile, Events, Log File Retrieval, Measurements, Restart, Software Management
Operating System

Linux
Processor

ARM
RAM

1 GB, 512 MB
Flash

1 GB – 2 GB
Power Supply

Battery, DC Power Supply
Ingress Protection (IP) Rating

IP 40
Min Operating Temperatures

-40°C
Max Operating Temperatures

+75°C
Build-in Sensors

Accelerometer, Gyroscope, Magnetometer, Position
General Protocols / Mobile Technology

2G, 3G, 4G – LTE Cat 1
Industrial Protocols

CAN FD bus, CAN-Bus
Hardware Interfaces

Analogue I/Os, Digital I/Os, Ethernet, GPIO, RS232, RS485, SD Card, USB, USB-A
Integration Type

thin-edge.io
Supported Regions

Americas, ANZ, APAC, EMEA, LATAM, NAM

Device certification

Firmware NameHardware ModelAgent NameCumulocity IoT Version
owa FW V2.3.0owa450 R4A A10KGTthin-edge.io 1.2.01020.416.0Download
owa FW V3.1.0 2025-08-07 16:00owa450A R4G A1577Hthin-edge.io 1.7.12026.25.0Download
